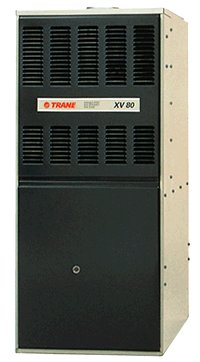

High Efficiency with XV
80 Variable Speed Gas Furnace
XV 80 Benefits
THIS DATA IS INCORRECT
Lowers Utility Bills
 | 80% Efficiency |
Fits
Almost Anywhere
| 40" High Cabinet
|
| Depth Only 28"
|
| Convertible to Horizontal |
Runs
Day After Day
| Microelectronic Controller
|
| Heavy Steel Cabinet
|
| Adaptive Hot Surface Silicon Nitride Igniter |
Built
To Last
| Multiport In-shot Burners |
| One Piece Heat Exchanger
|
| Electro-deposition Paint
|
| Cleanable Filter
|
| 24-Volt Fuse Protects Controls |
Quiet
Comfort
| Two-Stage Gas Heat
|
| Variable Speed Blower Motor
|
| Insulated Cabinet
|
| Increased Dehumidification |
Backed by Trane
| 20-Year Nonprorated Limited Warranty on Heat Exchanger
|
| 1-Year Limited Warranty on All Other Parts
|
| Optional Extended Warranties Available |
XV 80 GAS FURNACE
| Model |
Height
(in.) |
Width
(in.) |
Depth
(in.) |
Capacity
(000)
Output-BTUH |
ICS*
AFUE |
| Upflow/Horizontal |
|
|
|
Stage
2 |
Stage
1 |
|
| TUD060R9V3J |
40 |
17.5 |
28 |
48 |
31.2 |
80 |
| TUD080R9V3J |
40 |
17.5 |
28 |
64 |
41.6 |
80 |
| TUD100R9V5J |
40 |
21 |
28 |
79 |
52 |
80 |
| TUD120R9V5J |
40 |
24.5 |
28 |
95 |
62.4 |
80 |
| TUD140R9V5J |
40 |
24.5 |
28 |
111 |
72.8 |
80 |
| Downflow/Horizontal |
|
|
|
|
|
|
| TDD060R9V3E |
40 |
17.5 |
28 |
48 |
31.2 |
80 |
| TDD080R9V3E |
40 |
17.5 |
28 |
63 |
41.6 |
80 |
| TDD100R9V5E |
40 |
21 |
28 |
81 |
52 |
80 |
| TDD120R9V5E |
40 |
24.5 |
28 |
95 |
62.4 |
80 |
*Isolated Combustion
System
As part of our continuous product improvement,
The Trane Company reserves the right to change specifications and
design without notice. Read important energy cost and efficiency
information available from your dealer.
|
