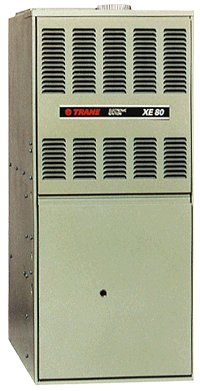

Good Efficiency with XE
80 Single-Stage Gas FurnaceXE 80
Benefits
THIS DATA IS INCORRECT
Lowers Utility Bills
 | Up to 80% Efficiency |
Fits
Almost Anywhere
| 40" High Cabinet
|
| Depth Only 28"
|
| Convertible to Horizontal |
Runs
Day After Day
| Self-diagnostic Controls
|
| Heavy Steel Cabinet
|
| Adaptive Hot Surface Silicon Nitride Igniter |
Built
To Last
| Multiport In-shot Burners |
| One Piece Heat Exchanger
|
| Electro-deposition Paint
|
| Washable Filter |
Quiet
Comfort
| Insulated Cabinet |
Backed by Trane
| 20-Year Nonprorated Limited Warranty on Heat Exchanger |
| 1-Year Limited Warranty on All Other Parts
|
| Optional Extended Warranties Available |
XE 80 GAS FURNACE
| Model |
Height
(in.) |
Width
(in.) |
Depth
(in.) |
Capacity
(000)
Output-BTUH |
ICS*
AFUE |
| Upflow/Horizontal |
|
| TUD040C924J |
40 |
14.5 |
28 |
32 |
80 |
| TUD040C930J |
40 |
14.5 |
28 |
32 |
80 |
| TUD060C924J |
40 |
14.5 |
28 |
47 |
80 |
| TUD060C936J |
40 |
14.5 |
28 |
47 |
80 |
| TUD080C924J |
40 |
17.5 |
28 |
64 |
80 |
| TUD080C936J |
40 |
17.5 |
28 |
63 |
80 |
| TUD080C948J |
40 |
17.5 |
28 |
64 |
80 |
| TUD100C936J |
40 |
17.5 |
28 |
79 |
80 |
| TUD100C945J |
40 |
17.5 |
28 |
80 |
80 |
| TUD100C948J |
40 |
21 |
28 |
79 |
80 |
| TUD100C960J |
40 |
21 |
28 |
80 |
80 |
| TUD100C972J |
40 |
24.5 |
28 |
80 |
80 |
| TUD120C954J |
40 |
21 |
28 |
95 |
80 |
| TUD120C960J |
40 |
24.5 |
28 |
95 |
80 |
| TUD140C960J |
40 |
24.5 |
28 |
111 |
80 |
| Downflow/Horizontal |
|
| TDD040C924E |
40 |
14.5 |
28 |
31 |
78 |
| TDD060C924E |
40 |
14.5 |
28 |
48 |
80 |
| TDD060C936E |
40 |
14.5 |
28 |
48 |
80 |
| TDD080C936E |
40 |
17.5 |
28 |
64 |
80 |
| TDD080C945E |
40 |
17.5 |
28 |
64 |
80 |
| TDD100C945E |
40 |
17.5 |
28 |
80 |
80 |
| TDD100C948E |
40 |
21 |
28 |
80 |
80 |
| TDD100C954E |
40 |
21 |
28 |
80 |
80 |
| TDD120C954E |
40 |
21 |
28 |
96 |
80 |
| TDD120C960E |
40 |
24.5 |
28 |
96 |
80 |
| TDD140C960E |
40 |
24.5 |
28 |
112 |
80 |
*Isolated Combustion
System
As part of our continuous product improvement,
The Trane Company reserves the right to change specifications and
design without notice. Read important energy cost and efficiency
information available from your dealer.
|
