High Efficiency with XB
80 Single Gas FurnaceXB 80
Benefits
THIS DATA IS INCORRECT
Lowers
Utility Bills
 | 80% Efficiency |
Fits Almost Anywhere
| 40" High Cabinet
|
| Depth Only 28"
|
| Convertible to Horizontal |
Runs Day After Day
| Microelectronic Controller
|
| Heavy Steel Cabinet
|
| Adaptive Hot Surface Igniter |
Built To Last
| Multiport In-shot Burners |
| One Piece Heat Exchanger
|
| Electro-deposition Paint
|
| Washable Filter |
Quiet Comfort
| Two-Stage Gas Heat
|
| Insulated Cabinet |
Backed by Trane
| 20-Year Nonprorated Limited Warranty on Heat Exchanger |
| 1-Year Limited Warranty on All Other Parts
|
| Optional Extended Warranties Available |

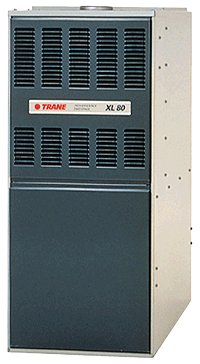

XL 80 GAS FURNACE
| Model |
Height
(in.) |
Width
(in.) |
Depth
(in.) |
Capacity
(000)
Output-BTUH |
ICS*
AFUE |
| Upflow/Horizontal |
|
|
|
Stage
2 |
Stage
1 |
|
| TUD040R924H |
40 |
14.5 |
28 |
32 |
20.8 |
80 |
| TUD060R936H |
40 |
14.5 |
28 |
47 |
31.2 |
80 |
| TUD080R936H |
40 |
17.5 |
28 |
63 |
41.6 |
80.2 |
| TUD080R948H |
40 |
17.5 |
28 |
63 |
41.6 |
80 |
| TUD100R936H |
40 |
17.5 |
28 |
79 |
52 |
80.6 |
| TUD100R948H |
40 |
21 |
28 |
79 |
52 |
81 |
| TUD100R960H |
40 |
21 |
28 |
80 |
52 |
80 |
| TUD100R961H |
40 |
24.5 |
28 |
79 |
52 |
81 |
| TUD120R954H |
40 |
21 |
28 |
94 |
62.4 |
80 |
| TUD120R960H |
40 |
24.5 |
28 |
95 |
62.4 |
80 |
| TUD140R960H |
40 |
24.5 |
28 |
111 |
72.8 |
80 |
| Downflow/Horizontal |
|
|
|
|
|
|
| TDD040R924C |
40 |
14.5 |
28 |
32 |
20.8 |
80.6 |
| TDD060R936C |
40 |
14.5 |
28 |
47 |
31.2 |
80.3 |
| TDD080R936C |
40 |
17.5 |
28 |
64 |
41.6 |
80.6 |
| TDD100R945C |
40 |
17.5 |
28 |
79 |
52 |
80.3 |
| TDD100R948C |
40 |
21 |
28 |
79 |
52 |
80.1 |
| TDD100R960C |
40 |
21 |
28 |
79 |
52 |
80.2 |
| TDD120R960C |
40 |
24.5 |
28 |
94 |
62.4 |
80.3 |
| TDD140R960C |
40 |
24.5 |
28 |
112 |
72.8 |
80.8 |
*Isolated Combustion
System
As part of our continuous product improvement,
The Trane Company reserves the right to change specifications and
design without notice. Read important energy cost and efficiency
information available from your dealer.
|
